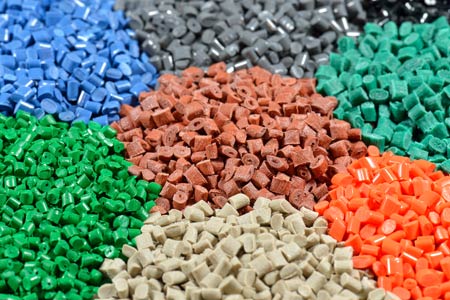

Material selection is a critical factor when injection molding. Selecting the right resign for your injection molded part will be the difference between a product that performs as designed versus one that won’t and could prematurely fail. There are many types of resins available today, each with it’s own set of features, benefits and properties. This guide will help you understand the options and key selection criteria.

Understanding Resin Categories

Molding resins generally fall into two larger categories: commodity resins as follows:

• Commodity Crystalline & Amorphous unfilled and filled with glass, carbon, PTFE
• Engineering and High Performance Crystalline & Amorphous unfilled and filled with glass, carbon, PTFE

Commodity Resins – less expensive, readily available, and perfect for general uses. It is likely that products produced from these materials are within your grasp at this very moment! Commodity resins are further divided categorically into crystalline, amorphous unfilled, and filled amorphous. Let’s examine some examples of each, and what makes them different.

Crystalline Commodity Resins:

• HDPE (High-Density Polyethylene) – excellent chemical resistance and durability
• LDPE (Low-Density Polyethylene) – flexibility and impact resistance
• PP (Polypropylene): – good chemical and fatigue resistance
• PE (Polyethylene) – versatility and moisture resistance

Amorphous Commodity Resins:

• ABS (Acrylonitrile Butadiene Styrene) – good impact strength and aesthetics
• Acrylic (PMMA) – optical clarity and UV resistance
• PS (Polystyrene) – low cost and ease of processing

Engineering and High-Performance Resins

When compared to commodity resins, these materials offer superior mechanical properties, temperature resistance, and chemical resistance. They tradeoff is a higher price tag, but required for more challenging operational environments.  They too are further categorized into crystalline and amorphous groups. Here are the most popular ones, and their defining features:

Crystalline Engineering Resins:

• Acetal (POM): – excellent dimensional stability and fatigue resistance
• Nylon (PA) – outstanding strength and wear resistance
• PBT (Polybutylene Terephthalate) – food electrical properties with chemical resistance
• PET (Polyethylene Terephthalate) – superior wear resistance and dimensional stability
• PEEK (Polyether Ether Ketone) – exceptional temperature resistance and strength
• PPS (Polyphenylene Sulfide) – excellent chemical resistance and dimensional stability

Amorphous Engineering Resins:

• Polycarbonate (PC) – high impact strength and optical clarity
• Urethane – outstanding abrasion resistance and flexibility
• PSU (Polysulfone) – high temperature resistance and hydrolytic stability
• PEI (Polyetherimide) – excellent flame resistance and dimensional stability

Filled vs. Unfilled

The standard properties for commodity and engineering resins can be further enhanced when supplemented by various fillers such as:

• Glass Fiber – improves strength, stiffness, and dimensional stability
• Carbon Fiber – provides excellent strength-to-weight ratio and electrical conductivity
• PTFE (Polytetrafluoroethylene) – reduces friction and improves wear resistance

Key Selection Factors

Determining which material is best for your specific part relies on making sure you understand several key considerations:

Application Requirements – operating temperature range, chemical exposure, mechanical load conditions, lifespan, and regulatory compliance considerations

Mechanical Properties – tensile strength, modulus, and resistance factors for impact, fatigue creep, and wear

Environmental Factors – moisture and UV exposure, chemical contact, and temperature fluctuations

Processing Considerations – mold shrinkage rates, flow characteristics, frying requirements, cycle time implications, and post-molding operations

Economic Factors – cost of raw material, processing efficiency, part consistency, expected service life, and total cost of ownership

Making Your Selection

Choosing the right resin ultimately becomes a tug-of-war between performance requirements and cost. For simpler, cost-sensitive applications, PP, PE, or ABS might be just right. Household items, packaging, and toys often use these resins. For mor moderate performance, enhanced commodity resins (with glass or other fillers) or basic engineering resins like nylon or acetal would be a better option. These are suitable for automotive components, consumer electronics housings, and appliance parts. For more demanding applications, high-performance resins like PEEK, PPS, or PEI must be used to resist extreme temperatures, corrosive chemicals, or heavy mechanical stresses. Medical devices, aerospace components, and automotive components often require these high-end materials.

If in doubt, your injection molding specialists or material suppliers can provide guidance based on what you must accomplish in the application. The choice is ultimately yours to make at the direction of your design engineering team, but specialists can at least help narrow down your options.
